Drawmer

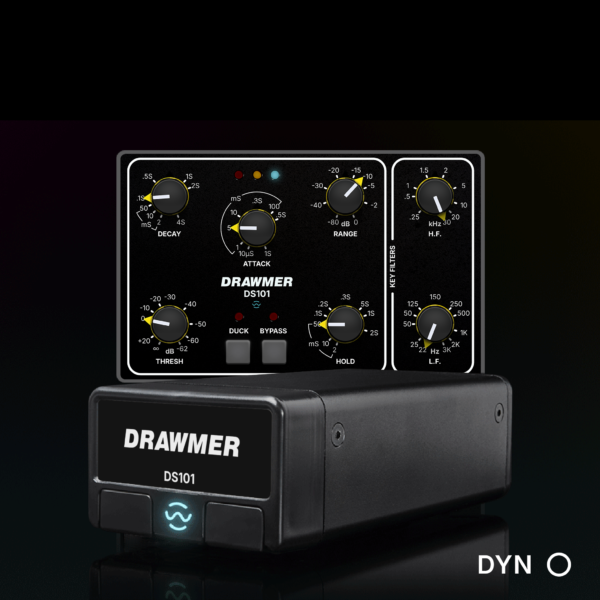

Drawmer DS101 SEPIA Module
The industry-standard high-end noise-gate comes to SEPIA! The DS101 is a sophisticated noise gate incorporating a number of features pioneered by Drawmer, which are invaluable to the sound engineer, and not found on conventional noise gates, such as variable high and lowpass filters for "frequency conscious gating." The very fast attack of the DS101 means that it can open in a matter of micro seconds, thus preserving the natural attack of whatever sound is being gated and the comprehensive envelope controls mean that the gain can be changed at whatever rate best suits the material being processed.
Price on enquiry
Enquire
Online ordering is currently unavailable. Get in touch for prices and availability.
Specifications
- Manufacturer
- Drawmer
- SKU
- DS101 SEPIA
Details
• Channel Configuration: Mono
• Noise gate
• Input Impedance: 20 kΩ
• Max Input Level: +17 dB
• Output Impedance: 50 Ω (balanced), 100 Ω (unbalanced)
• Max Output Level: +17 dB
• Bandwidth: 23 Hz to 31 kHz (–1 dB)
• Noise at Unity Gain (ref 0 dB, Gate open):
AV:
• Wideband: -90 dB
• 22 Hz to 22 kHz: -95 dB
• CCIR ARM: -95 dB
• IEC A: -97 dB
• Q-Pk CCIR: -84 dB
RMS:
• Wideband: -88 dB
• 22 Hz to 22 kHz: -93 dB
• CCIR ARM: -93 dB
• IEC A:-95 dB
• Distortion: <0.025%
About Drawmer
Drawmer Audio 由 Ivor Drawmer 于1980年代初创办，一直以来都以高质量的信号处理解决方案为音频专业人士所推崇。来自英国的 Drawmer 因设计和制造极具创新的性动态处理器、均衡器及其他工作室工具而闻名，产品以其透明的音质和极高的制造质量而广受好评。 DS201 双通道门限和DL241如DS201自动压缩器等和DL241噪声抑制和动态控制方面的卓越表现而广受赞誉，已成为公司产品线中的代表之作。Drawmer 对声音卓越性和可靠性的承诺还体现在其监控控制器和母带处理工具上，为精准的监控和母带工作流程提供了必要的组成部分。四十多年来，Drawmer 始终是音频行业值得信赖的名字，并不断提供着不可或缺的工具以帮助工程师、制作人和音乐家在创作中呈现出色的音质和丰富的艺术表现。
Needs a host
