The first of the SEPIA hosts; a 1U 19" Rackmount, 6 slot unit with flexible I/O options to suit all professional workflows. Note: Refurbished option are only available in UK, Germany and USA.
Price on enquiry
View host
API

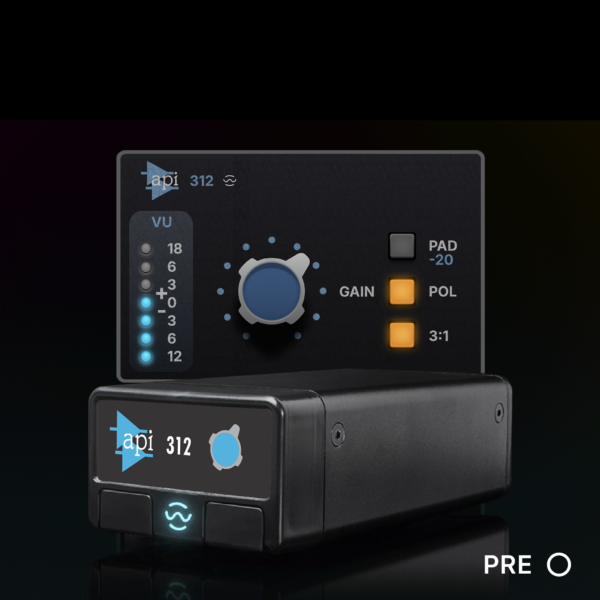

API 312 SEPIA Module
The 312 is one of API's most sought after and famous mic preamps. First introduced in the 1970s, it is well known and respected throughout the recording industry, and is the building block of the modern 3124 rack unit. Based on API co-founder Saul Walker's original designs, the API 312 Mic Pre combines 2520 op-amps and proprietary transformers. It delivers the analog warmth, massive headroom and unmistakable sound for which API is known for.
Price on enquiry
Enquire
Online ordering is currently unavailable. Get in touch for prices and availability.
Specifications
- Manufacturer
- API
- SKU
- 312 SEPIA
Details
• Gain Range: +34.5 dB to +68 dB (+14.5 dB to +48 dB with PAD)
• Maximum Input Level: –4 dBu (+16 dBu with PAD)
• Maximum Output Level: +31.5 dBu
• THD+N: < 0.05% @ +4 dBu output
• Input Impedance: 1500 Ω
• Output Impedance: < 75 Ω, Transformer Balanced
• Frequency Response: ±0.5 dB, 20 Hz – 40 kHz
• Connections: Sepia Module Connector
• Power Consumption: ±16V @ 30 mA (typical), +5V @ 20 mA (typical)
• Size: Sepia Single-Width Module, 1.6” x 2.6” x 5” (D)
• Weight: 1.2 lbs
About API
In 1969, Automated Processes Incorporated was formed by engineers and musicians who shared a common vision: to create the highest possible quality professional audio gear, and then back it up with excellent customer service. Over five decades later, that vision is stronger than ever and remains an integral part of API’s extraordinary success. We’re grateful for the inspired genius of API Founder Saul Walker, and we’re grateful for an ever-expanding number of users that recognize the unique value of API.
Today API is both pleased and gratified to continue to play a major role in the recording and production of music.
Needs a host
